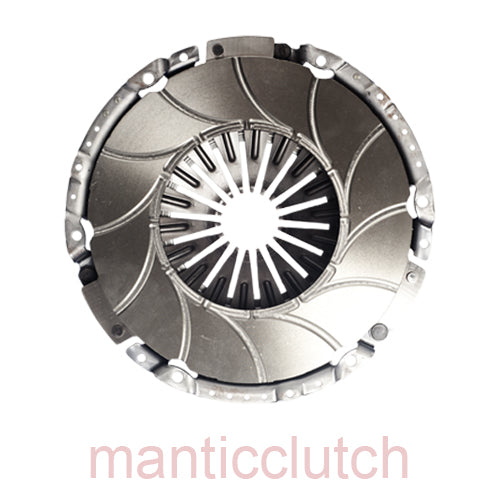

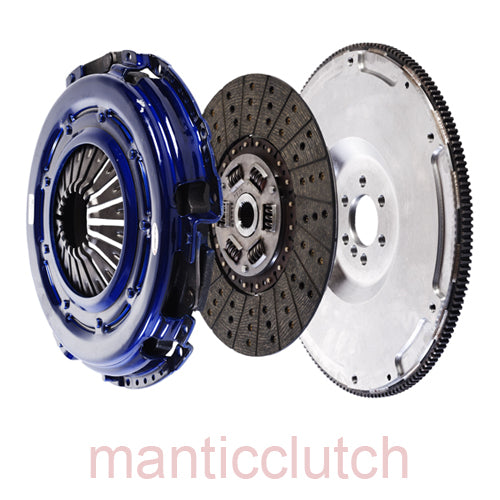

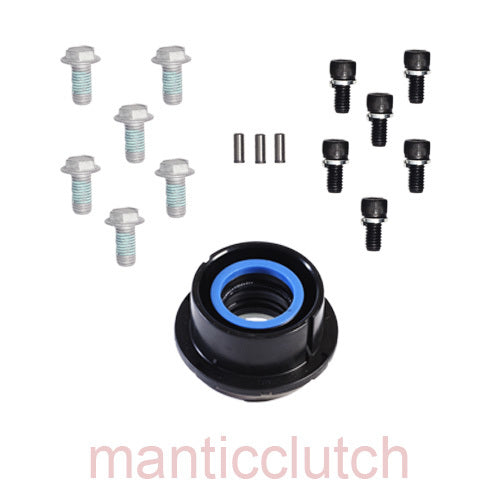

Mantic Street with ER² is a clutch kit specifically designed for the performance market. It features the patented groove design, ER², which is CNC machined on the friction face of the pressure plate. Capable of transmitting greater than 60% more torque than a standard clutch kit, Mantic Street with ER² is suitable for high performance vehicles. This overall torque capacity increase has been achieved by higher clamp loads, increased Mean Effective Radius of the friction area, better cooling of the pressure plate and higher coefficient of friction materials on the clutch disc. These design innovations directly equate to higher torque capacity. The clutch disc features an organic facing ring in contact with the pressure plate and a segmented cerametallic facing on the flywheel side. The cover assembly also features a decorative and corrosion resistant finish. The kit includes bearing, pressure plate, clutch disc, flywheel and bolts.
Clutch Diameter- 12" Rated Torque (ft-lbs) - 550 ft lbs (750Nm) Disc Spline 1-1/8" (29.5mm) Disc No. Teeth- 26 Disc Type-Sprung Centre Cushioned Disc Material-Organic & Cerametallic Throwout Bearing- YES Concentric Slave Cylinder including Bearing- NO Alignment Tool- NO Pilot Bush- NO Flywheel Included- YES Hardware Included- YES Fitting Instructions- YES
Applications 2005 - 2006 Pontiac GTO Coupe LS2 6.0L 2004 Pontiac GTO Coupe LS1 5.7L 2003 Chevrolet Corvette C5 Anniversary Edition LS1 5.7L 1998 - 2002 Camaro / Firebird LS1 5.7L 1998 Chevrolet Corvette C5 Indianapolis 500 PaceLS1 5.7L 1997 - 2004 Chevrolet Corvette C5 LS1 5.7L
