2005-2011 C6 CORVETTE (SHORT) ALUMINUM RADIATOR, DEWITT ^Sale

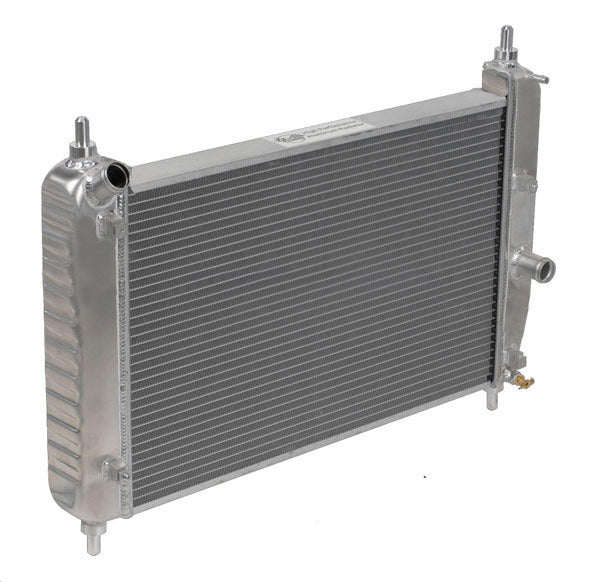

Direct fit 2005-2011 C6 Corvette (Short) aluminum radiator. This radiator and all model options features a shorter core for blower clearance. Radiator also features "press formed" stamped end tanks; which eliminates the factory plastic tanks. Use with Non-Z51 (base vehicle; manual transmission option). Please view the available options section below to narrow down specific application's features.

100% MADE IN THE USA.

Features

• Direct Fit Radiator

• 2 Rows of 1' tubes

• Stamped End Tanks

Available Options

• High performance 7 plate aluminum engine oil cooler (EOC). Oil ports are 3/4-16 SAE (identical to the factory GM radiator). Works with the factory GM oil line assembly (quick connection fttings required) or install the #10AN fittings (included) and use SS hose assemblies.

• Transmission oil connections (TOC) for correct factory type "quick connect" fittings. 2005-2011. All Z06 & C6 Automatic. (Use this option for 2007-09 with Z51)   NOTE: Excludes 2012 spl Z07

• Both an EOC (left side) and TOC (right side) are a true Direct Fit for 2005 & 2006 Z51 option cars. 2007 Z51 did not have the EOC option.
