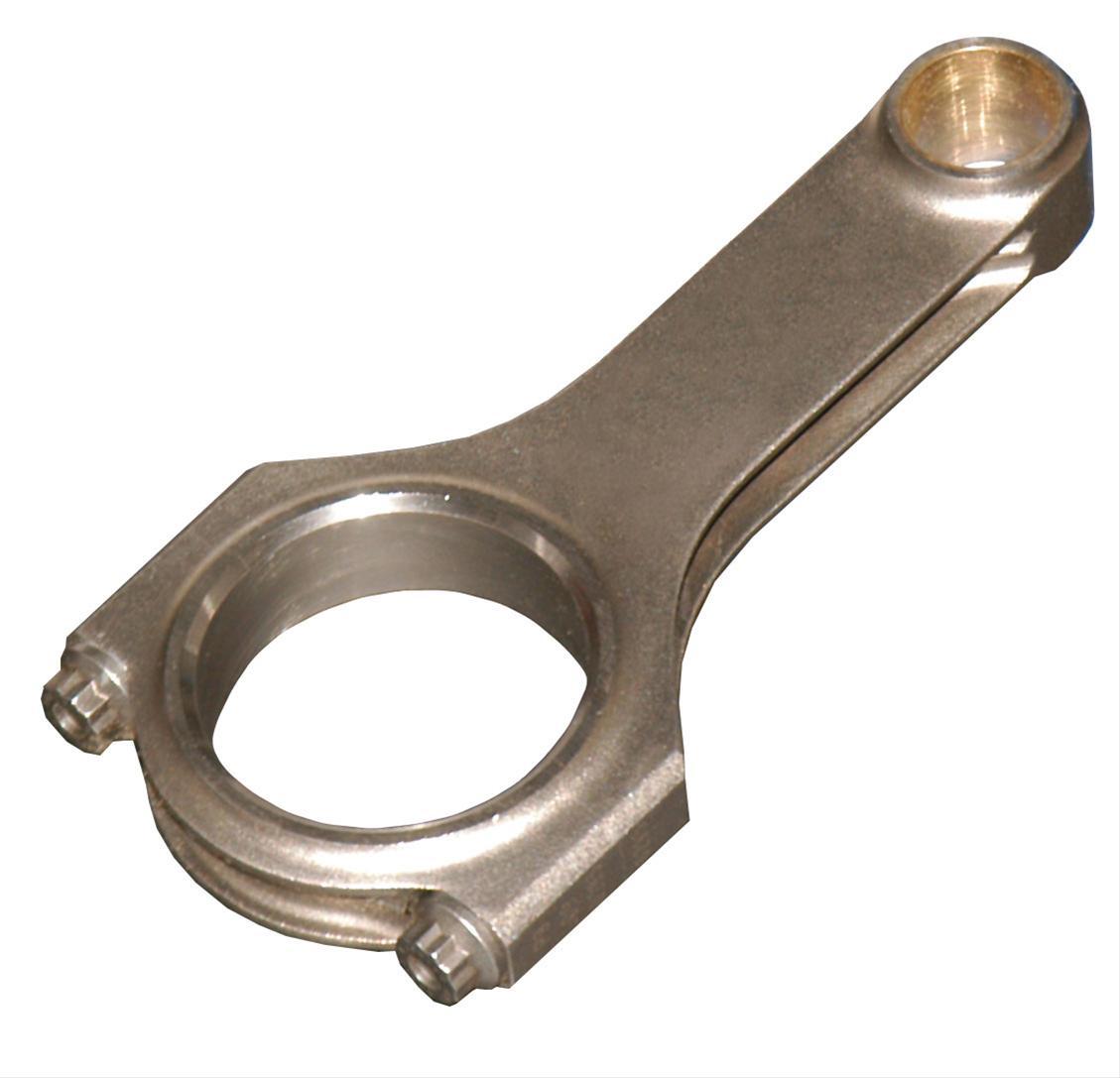

Eagle Connecting Rod, LS1/LS6 "ESP" on-center H-beam connecting rods- EAGLE 3D 6.125" CONNECTING RODS 2.100"CRANK, .927"PIN, .940" . Sold in set of 8. ESP 4340 Forged Connecting Rods for your high horsepower application.
Advertised Horsepower Rating (hp): 700 hp
Advertised RPM Rating: 7,500 rpm
Approximate Connecting Rod Weight (g): 620
Big End Bore Diameter (in.): 2.225
Big End Width (in.): 0.94
Cap Retention Style: Cap screw
Clearanced for Stroker: No
Connecting Rod Beam Style: H-beam
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Head Style: 12-point
Connecting Rod Bolt Material: 8740 chromoly steel
Connecting Rod Finish: Shot-peened
Connecting Rod Length Center to Center (in.): 6.125
Connecting Rod Material: Forged 4340 steel
Fastener Yield Strength (psi): 160,000
Magnafluxed: Yes
Pin End Bore Diameter (in.):0.927
Pin End Width (in.): 1.06
Quantity: Sold as a set of 8
Remanufactured:No
Rod Journal Diameter (in.):2.1
Weight Matched Set: Yes
Wrist Pin Style:Floating
