CORVETTE 1997-2004 SUPERCHARGER UPGRADE KIT - STAGE 3 A&A CORVETTES ^Sale

Corvette 1997-2004 Supercharger Upgrade Kit - Stage 3 A&A Corvettes

• This kit is designed for those that already have their own supercharger head unit and bracket but want the latest in intercooler and overall system design. (Works with most brands of superchargers)
• This new configuration puts the radiator back into its upright position which aids in both engine cooling and intercooler efficiency. Their custom sheet metal enclosure supports the front fascia and captures air from the radiator cavity, forcing it through the radiator and intercooler instead of allowing it to escape.
• The STAGE 3 kit also includes A & A's Ram Air intercooler. This intercooler is the most efficient intercooler on the market for the C5 Corvette. At 25" wide, with its integral "Ram Air" scoop, the intercooler rams massive amounts of air through the cooling fins. The scoop is completely sealed and does not allow any air to flow over the edges of the core. Air will always flow over the edges rather than through the core, if given the opportunity.
• The intercooler is also mounted well in front of the radiator so as not to cause any low speed cooling issues. This is a common problem with many other systems.
• The new system also gives the engine compartment a much cleaner look.
• The STAGE 3 kit adds the remainder of the charge tubing to complete the system, and a Turbosmart aluminum blow off valve with mounting hardware and an exhaust filter.

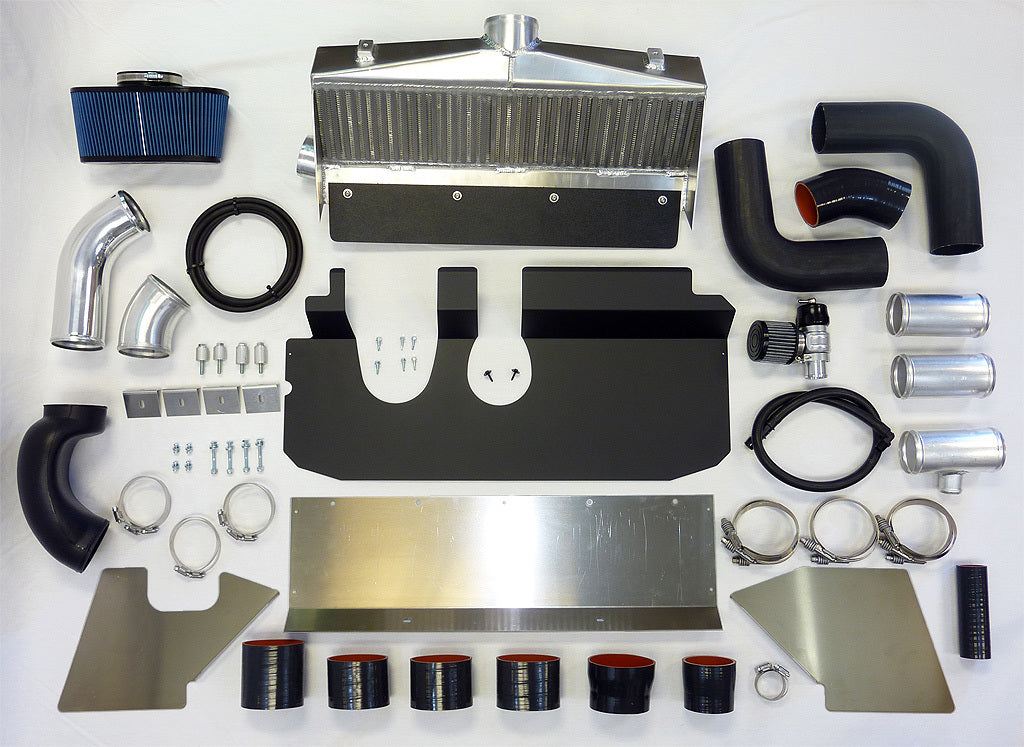

• The Stage 3 kit includes:
  • A&A Corvette Ram Air Intercooler
  • Powder coated aluminum top shroud with mounting screws
  • Three piece sheet metal enclosure kit with mounting screws
  • Air dam mounting bracket kit
  • Radiator support spacer kit
  • Formed plastic air bridge
  • Custom high flow air filter
  • Polished aluminum mandrel bent intake duct
  • 1/2" crankcase ventilation kit
  • 2 6” aluminum charge tubes
  • 6” charge tube with mounting flange for the blowoff valve
  • Turbosmart aluminum high flow blowoff valve
  • 2 90° rubber elbows
  • Silicone coupler kit: (1) 3 1/2" to 4" dia reducer, (1) 2 3/4" to 3" dia reducer, (1) 3" dia 45° elbow, (3)3 1/2 dia x 3" (1)3 1/2" dia x 4",(1) 1 1/2" dia x 6", and (2) rubber 90 degree elbows
  • Clamp kit: (10) 3.75"-4.25" Constant tension clamps, (8) #42 worm gear clamps, (2) #24 worm gear clamps
