Brand:
Manufacturer's Part Number:
CL12-250-3
Part Type:
Product Line:
Summit Racing Part Number:
CCA-CL12-250-3
UPC:
036584024484
Cam Style:
Hydraulic flat tappet
Basic Operating RPM Range:
2,300-6,500
Camshaft Use:
Street/Strip
Intake Duration at 050 inch Lift:
240
Exhaust Duration at 050 inch Lift:
246
Duration at 050 inch Lift:
240 int./246 exh.
Advertised Intake Duration:
284
Advertised Exhaust Duration:
296
Advertised Duration:
284 int./296 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:
0.507 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:
0.510 in.
Valve Lift with Factory Rocker Arm Ratio:
0.507 int./0.510 exh.
Lobe Separation (degrees):
110
Grind Number:
CS XE284H-10
Computer-Controlled Compatible:
No
Lifters Included:
Yes
Lifter Style:
Hydraulic flat tappet
Valve Springs Included:
No
Retainers Included:
No
Locks Included:
No
Valve Stem Seals Included:
No
Timing Chain and Gears Included:
No
Assembly Lubricant Included:
Yes
Pushrods Included:
No
Rocker Arms Included:
No
Gaskets Included:
No
Valve Springs Required:
Yes
Quantity:
Sold as a kit.

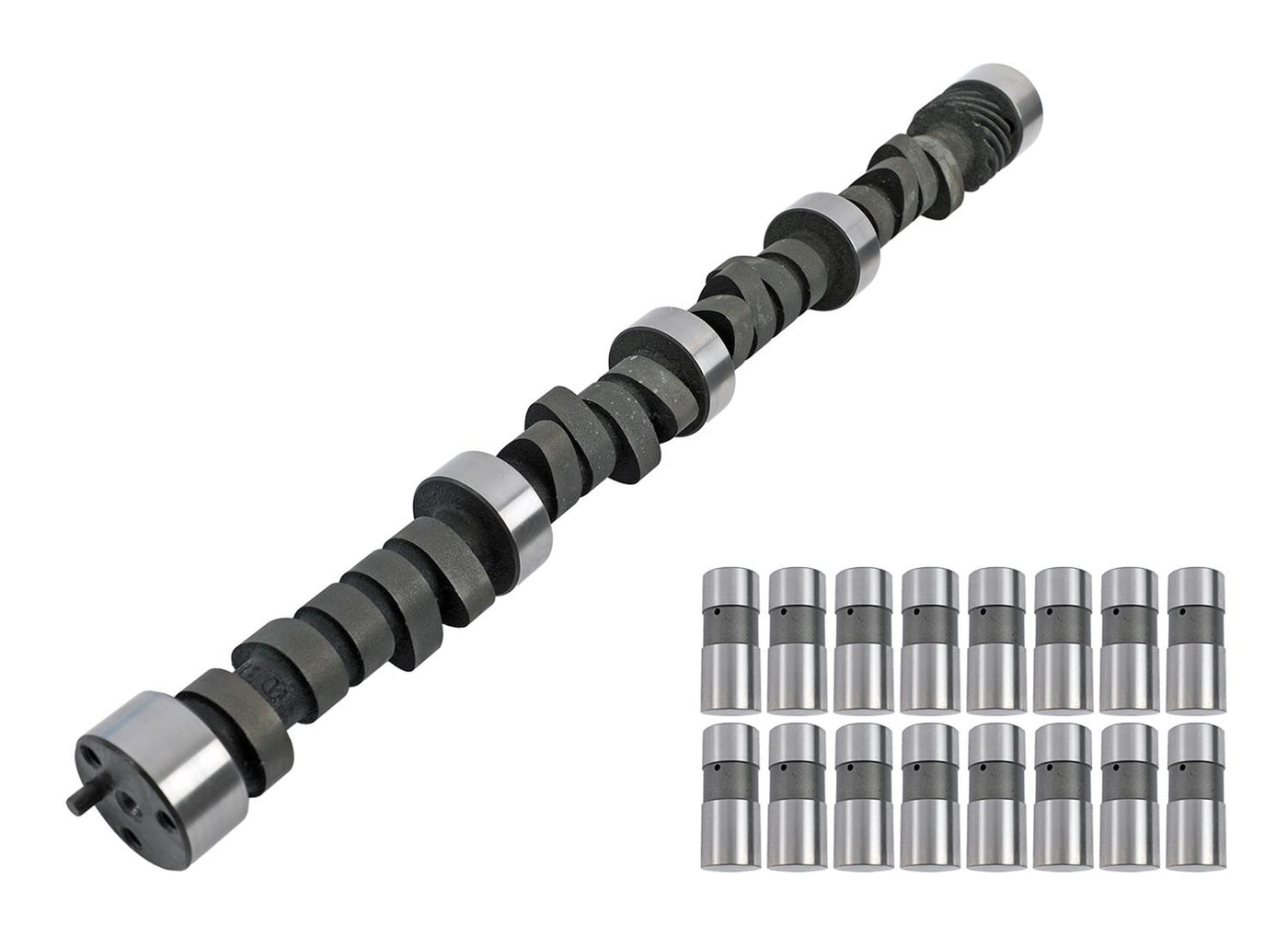

COMP Cams Xtreme Energy cam and lifter kits are built to take advantage of the latest cam technology and provide maximum performance. Whether your use is off-roading, towing, or street performance, there are Xtreme Energy options available for you. By using an aggressive lobe profile, they provide better throttle response and more top-end horsepower than equivalent kits from other manufacturers, while delivering increased engine vacuum. Order the model designed for your vehicle and engine application.
